Levelling Foot Mount - RB Type

Get a Quote Customize Now

Note : Customized solutions available. Please send an enquiry.

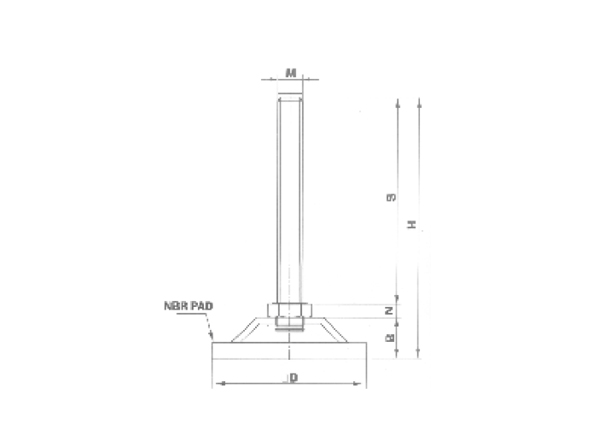

MODEL	DIMENSIONS(m/m)						MATERIALS		(FINISH)	4EA/kg
MODEL	Ø	M	S	H	N	B	BOLT & NUT		(FINISH)	4EA/kg
RB NBL (STEEL)	40	M6x1.0	40	59	6	13	SM10C SUS304	2t(SPHC) 2t(SUS304)	RB (Zn) NBL (Ni) SRB (Natural) PSBL (PL)	100
		M8x1.25	40	59						200
		M8x1.25	80	99						200
	55	M10x1.5	60	87	7	20		2.6t (SPHC) 2.5t (SUS304)		300
			100	127
			125	152
			150	177
		M12x1.75	50	78	8					500
			75	103
			100	128
			125	152
			150	178
	68	M12x1.75	50	79	8	21		3t (SPHC) 3t (SUS304)		600
			75	104
			100	129
			125	154
			150	179
			200	229
		M16x2.0	50	81	10					700
			75	106
			100	131
			130	161
			150	181
			180	211
			200	231
	81	M16x2.0	50	83	10	23				800
			75	108
			100	133
			130	163
			150	183
			180	213
			200	233
			250	283
			300	333
		M20x2.5	80	116	13					1000
			100	136
			130	166
			150	186
			180	216
			200	236
			250	286
			300	336
	103	M20x2.5	80	122	13	29		4.5t (SPHC) 4.0t (SUS304)		1500
			100	142
			130	172
			150	192
			180	222
			200	242
			250	292
			300	342
