Levelling Foot Mount - NS Type

Get a Quote Customize Now

Note : Customized solutions available. Please send an enquiry.

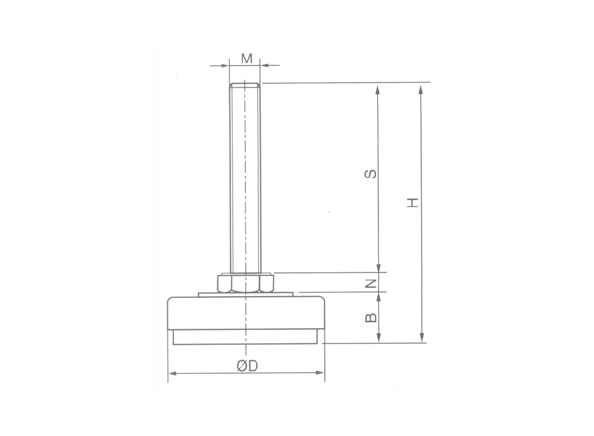

MODEL	DIMENSIONS(m/m)						MATERIALS		(FINISH)	4EA/kg
MODEL	Ø	M	S	H	N	B	BOLT & NUT		(FINISH)	4EA/kg
NS (STEEL)	30	M6x1.0	40	61	6	15	SM10C SUS304	1.5t (sphc) 1.5t (SUS304)	BL (Zn) NBL (Ni) SBL (Natural) PSBL (PL)	100
		M8x1.25	40	61						200
		M8x1.25	80	101						200
	40 38	M6x1.0	40	63		17				100
		M10x1.5	40	63						200
		M10x1.5	80	103						200
	48	M10x1.5	60	84.5	7	17.5		2t (SPHC) 2t (SUS304)		300
			100	124.5
			125	149.5
			150	174.5
		M12x1.75	50	75.5	8					500
			75	100.5
			100	125.5
			125	150.5
			150	175.5
			200	225.5
		M16x2.0	50	77.5	10					700
			75	102.5
			100	127.5
			130	157.5
			150	177.5
			180	207.5
			200	227.5
	61	M12x1.75	50	76.5	8	18.5				600
			75	101.5
			100	126.5
			125	151.5
			150	176.5
			200	226.5
		M16x2.0	50	78.5	10					800
			75	103.5
			100	128.5
			130	158.5
			150	178.5
			180	208.5
			200	228.5
			250	278.5
		M20x2.5	80	111.5	13					1000
			100	131.5
			130	161.5
			150	181.5
			180	211.5
			200	231.5
			250	281.5
	72	M16x2.0	50	80	10	20		2.3 (SPHC) 2.0t (SUS304)		900
			75	105
			100	130
			130	160
			150	180
			180	210
			200	230
			250	280
		M20x2.5	80	113	13					1200
			100	133
			130	163
			150	183
			180	213
			200	233
			250	283
