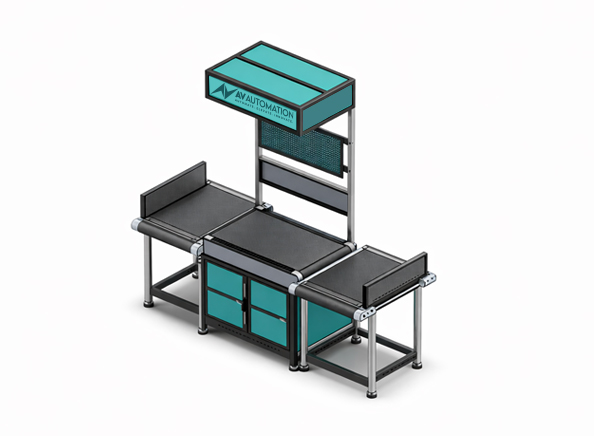

Z Belt Sorter / Static DWS

Note : Customized solutions available. Please send an enquiry.
z-belt-sorter-static-dws
  • Overview
z-belt-sorter-static-dws

Advantage:

It is a high-efficiency equipment for barcode scanning, automatic sorting, package weighing, and image collection and storage of face sheets when sending and receiving parcels in express delivery, logistics, and e-commerce industries. It has the characteristics of simple operation, comprehensive functions and high efficiency.

  • Barcode scanning (barcode missing, dirty, wrinkled easy to identify)
  • Automatic sorting one point four (can automatically sort four different express company parcels)
  • Package weighing (reduce human factors, resulting in inaccurate weight)
  • Preservation of the photo of the face sheet (traceable)
  • Data export (reports can be generated)
  • Improved operational efficiency (saving labour costs)
  • Data can be entered into ERP system and express system at the same time
  • Cost-effective : The price is about 1/3 of the same cross belt sorter, suitable for sinking markets.
  • High scalability : The number of chutes can be increased or decreased at any time, individual combinations, easy maintenance of equipment, and greatly improved equipment efficiency.
Get a Quote
Specifications Details
Conveyor Type PVK Flat Belt
Belt Direction Bi-Directional
Barcode Type Code 128/Code39/EAN Code/D Code
Field Of Vision 180 Degree
Parcel Dimensions (Min) 50(L)x50(W)x25(H)
Parcel Dimensions (Max) 400(L)x400(W)x400(H)
Scale Weighing Range 50 gm to 30 kg.
Scale Weighing Accuracy ± 10 gram.
Image Real-time shipment imaging & transfer to ERP.
Read Rate 95%
Dimensioning Throughput 1000-1200 PPH
Sorting Throughput 1200-1500 PPH
Rated Voltage 230V.4/-10% and 50 Hz±1.2%
Rated Power 12 kW. UPS Power

Customized solutions available. Please send an enquiry.
