ARB Sorter

Note : Customized solutions available. Please send an enquiry.
arb-sorter
  • Overview
arb-sorter

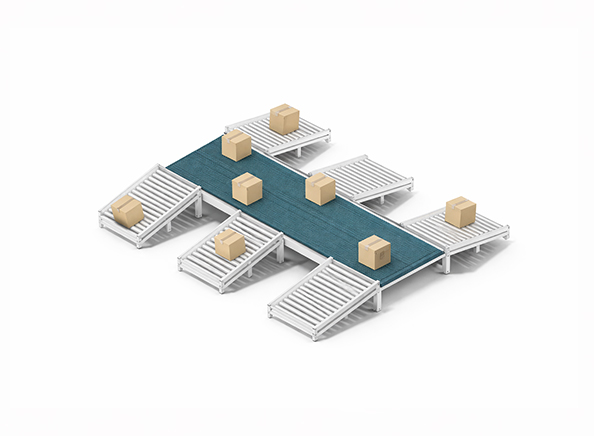

ARB SORTER :- is a multidirectional conveyor, equipped with the unique and patented 553 Flex Top modular belt, and with directional belt or plate, is able to handle a variety of products at 360°. The ARD Sorter p is available in different widths and lengths and in 4 different versions:

  • Diverter - able to quickly move side to side your goods
  • Dynamic Turn - able to rotate dynamically your goods
  • Static Turn - able to rotate statically your goods
  • Speed - able to accelerate/decelerate your goods

Automatic Storage System

  • Distribution system
  • Sorting
  • Lane divider

The Goods can be guided over the 553 Flextop in 3 different directions : Straight, left or right, bases on the correct exit to be taken.

Get a Quote
Specifications Details
Belt Pitch 25,4 mm
Thickness 8,7 mm
Increments 76,2 mm
Total Length 600 mm ÷ 1400 mm
Total Width 390 mm ÷ 1000 mm
Material of Modules Dark grey acetal (POM)
Material of Spheres Blue Polyamide (PA)
Temperature Range Dry: -40°C ÷ 80°C Wet: n.a.
(Dry: -40°F ÷ 176°F Wet: n.a.)
Max. Working Load 27.500 N/m belt width
Open Area 0%
Frame Stainless steel or Painted steel

Customized solutions available. Please send an enquiry.
