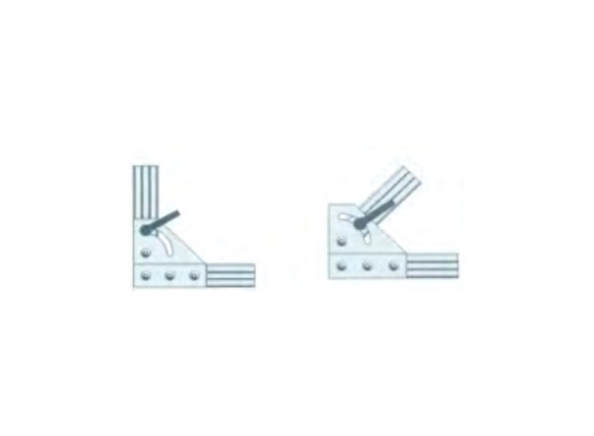

90° Pivot Bracket

Get a Quote Customize Now whatsapp icon
Note : Customized solutions available. Please send an enquiry.
90-pivot-bracket
90-pivot-bracket
90-pivot-bracket
Part No QTY Description
411 & 412 3 M6 x 10mm FBHSCS & Economy T-Nut
411 & 412 3 M8 x 16mm FBHSCS & Economy T-Nut


Order Code Part No A B C D E F G H Compatibility Code
AVT - 30 L 6133 90 30 15 Ø6.3 Ø8 Ø6.3 3.36 4 30 Left
AVT - 30 R 6134 90 30 15 Ø6.3 Ø8 Ø6.3 3.36 4 30 Right
AVT - 40 L 6135 120 40 20 Ø8.3 Ø10 Ø8.3 5.36 6 40 Left
AVT - 40 R 6136 120 40 20 Ø8.3 Ø10 Ø8.3 5.36 6 40 Right

Customized solutions available. Please send an enquiry.
